Electric Chain Winders

Owseat specialise in supplying and installing Awning & Casement Window Actuators throughout Sydney. We can provide your home or business with a leading quality range of Awning & Casement Window Actuators to regulate air flow to naturally control room temperatures to reduce energy costs.

The Awning & Casement Window Actuators we provide are either Automatic , that respond to a remote or open when an alarm is triggered but Owseat also offers a manual solutions Whether its for a home or for a business, our range of Awning & Casement Window Actuators can provide you with the solution for what ever the size, for what ever the type of window.

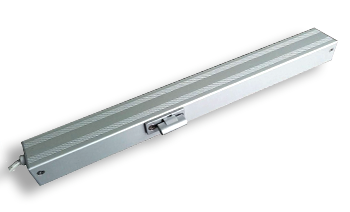

OWAT-28 Electric Chain Winder

240 volt
Suitable for top and center pivoted Casement or hopper windows
Simple but delicacy design
Optional installation:
Use double link chain to ensure smoothness and stability
Remote Available
Electronic over load cut oﬀ
Endurance tests ( 30,000 cycles ) are carried out ;

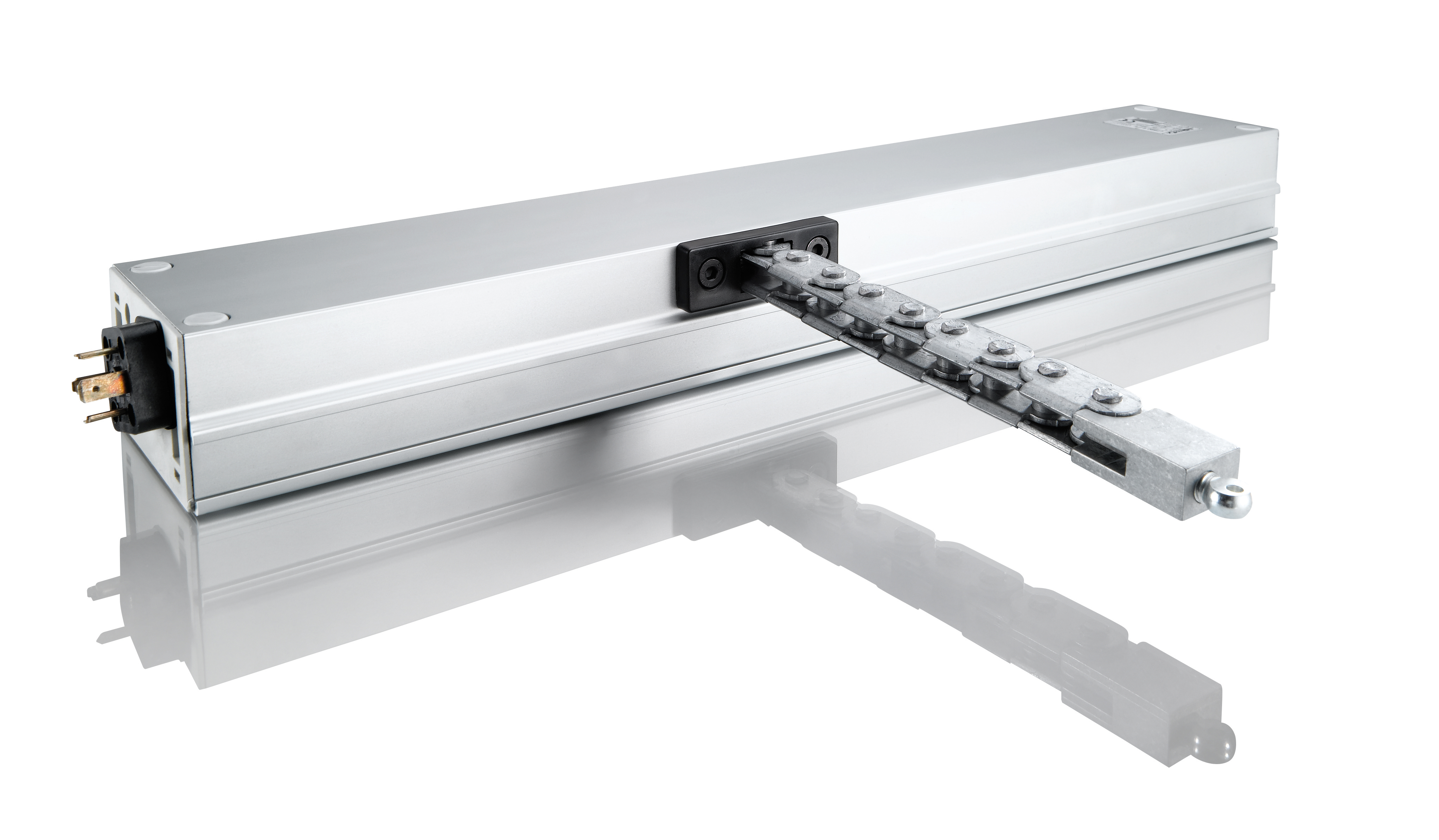

LINKEO 2 250mm stroke 230V AC silver

230V / 50Hz motor or 24V DC.
Electronic Factory set limits (can be connected in parallel).
4 minute running time.
Linkeo DC requires a regulated power supply.
Suitable for most glass window applications with no additional brackets required.
Maintenance Free.
Horizontal mount only.
Intermittent Usage.

Lockwood Elevation Electric Window Actuator - Lockwood Australia

Awning and casement windows
High out of reach windows
Conveniently open single or a group of windows
Commercial buildings
Residential buildings

Features

Actuators can be controlled individually or grouped into zones
Actuator can withstand 220kg applied negative pressure*
9kg closing force ensures a tight window seal when closed
Smooth chain movement
40 seconds Opening/closing time
300mm chain opening
Strong, corrosion resistant stainless steel chain (grade 304)
Field adjustable chain limiter. Limit chain between 50-300mm @ every 10mm
Quick clutch release Key for easy installation without power connected
Connect and synchronize a pair of window actuators to one large window
Ability to install actuator in multiple orientations including top and bottom chain exit.
Will cater for window sashes as short as 300mm high**
Can connect to touch screen display, standard wall switch or Cbus systems
Network cabling can span up to 300m without voltage drop
Connect and control up to 30 window actuators to a touch screen display
Can connect multiple actuators (31 maximum) to a standard wall switch

Contact us for a free quote
