Lockwood Lever Handle Furniture

LOCKWOOD 4800 SERIES NARROW STILE PLATE FURNITURE

A slim-line, rectangular brass plate that adds style to your choice of lever.

Designed for use with Lockwood 3770/3570 Series Mortice Latches (4600/4700) and 3780/3580 Series Mortice Latches (4800/4900 Series). Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Fixing
Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
Fixing screws to suit door thickness between 32 and 50mm. For thicker doors longer screws and spindles are available on application.

Standard Finishes

Chrome Plate CP
Polished Brass PB
Satin Chrome SC

Dimensions

Trade Pack

4600/4700 & 4800/4900 Series

Description	Part Number	Part Number
	3770/3570 Series	3780/3580 Series
External Plate with Cyl Hole (Con. Fix), No Lever	4600SC	4800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever	4700SC	4900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever	4601/70SC	4801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever	4701/70SC	4901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever	4602SC	4802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever	4603/70SC	4803/70SC
Internal Plate with Oval T/Knob (Vis. Fix), Solid Brass Lever	4704/70SC	4904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever	4805/70SC	4805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever	4905/70SC	4905/70SC
Internal Plate with Oval T/Knob (Vis. Fix), No Lever	4706SC	4906SC
External Plain Plate (Con. Fix), No Lever	4807SC	4807SC
Internal Plain Plate (Vis. Fix), No Lever	4907SC	4907SC
External Plate with Cyl Hole (Con. Fix) & Fixed Lever	4608/70LSC	4808/70LSC
Internal Plate with Cyl Hole (Vis. Fix) & Fixed Lever	4708/70LSC	4908/70LSC
External Plain Plate (Con. Fix) & Fixed Lever	4609/70LSC	4809/70LSC
Internal Plain Plate (Vis. Fix) & Fixed Lever	4709/70LSC	4909/70LSC
External Plate with Two Cyl Holes (Con. Fix)		4810SC
Internal Plate with Two Cyl Hoes (Vis. Fix)		4910SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever	4620/70SC	4820/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever	4720/70SC	4920/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever	4622/70SC	4822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever	4722/70SC	4922/70SC
External Plate with L.E.D (Con. Fix), No Lever	4623SC	4823SC
Internal Plate with Disabled Accessible Turn (Vis. Fix), Solid Brass Lever	4739/70SC	4939/70SC
		3540 Series
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 90 Degree Solid Brass Lever		4980/70SC
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 45 Degree Solid Brass Lever		4981/70SC

Fixing

Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
Fixing screws to suit door thickness between 32 and 50mm. For thicker doors longer screws and spindles are available on application.

Standard Finishes

Chrome Plate CP
Polished Brass PB
Satin Chrome SC

Dimensions

LOCKWOOD 5800 SERIES NARROW STILE PLATE FURNITURE

Functional, yet elegant, the soft lines of this round-ended brass plate complement a wide range of levers.

Trade Pack

5600/5700 & 5800/5900 Series

Description	Part Number	Part Number
	3770/3570 Series	3780/3580 Series
External Plate with Cyl Hole (Con. Fix), No Lever	5600SC	5800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever	5700SC	5900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever	5601/70SC	5801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever	5701/70SC	5901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever	5602SC	5802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever	5603/70SC	5803/70SC
Internal Plate with Oval T/Knob (Vis. Fix), Solid Brass Lever	5704/70SC	5904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever	5805/70SC	5805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever	5905/70SC	5905/70SC
Internal Plate with Oval T/Knob (Vis. Fix), No Lever	5706SC	5906SC
External Plain Plate (Con. Fix), No Lever	5807SC	5807SC
Internal Plain Plate (Vis. Fix), No Lever	5907SC	5907SC
External Plate with Cyl Hole (Con. Fix) & Fixed Lever	5608/70LSC	5808/70LSC
Internal Plate with Cyl Hole (Vis. Fix) & Fixed Lever	5708/70LSC	5908/70LSC
External Plain Plate (Con. Fix) & Fixed Lever	5609/70LSC	5809/70LSC
Internal Plain Plate (Vis. Fix) & Fixed Lever	5709/70LSC	5909/70LSC
External Plate with Two Cyl Holes (Con. Fix)	5810SC
Internal Plate with Two Cyl Hoes (Vis. Fix)	5910SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever	5620/70SC	5820/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever	5720/70SC	5920/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever	5622/70SC	5822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever	5722/70SC	5922/70SC
External Plate with L.E.D (Con. Fix), No Lever	5623SC	5823SC
Internal Plate with Disabled Accessible Turn (Vis. Fix), Solid Brass Lever	5739/70SC	5939/70SC
		3540 Series
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 90 Degree Solid Brass Lever		5980/70SC
Internal Plain Plate (Vis. Fix) to Suit 3540 Series, 45 Degree Solid Brass Lever		5981/70SC

Handing
Plates are not handed; Symmetrical levers may be reversed by removing stop screw.

Fixing
Plates are designed to fit back to back.
If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Door Thickness
External plates are supplied with fixing screws to suit door thickness between 32 and 50mm.

Finishes

Standard

Satin Chrome Brushed SC

Non Standard

Chrome Plate CP
Polished Brass PB
Polyester Powdercoat PPC

Other finishes on application.

Dimensions

LOCKWOOD 1800 SERIES SQUARE END PLATE DOOR FURNITURE

Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.

The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture. Over the years the Lockwood brass door range has evolved as the product of choice for leading Australian architects in commercial, institutional and industrial applications.

Application
Designed for use with the Lockwood Selector & Synergy Series Mortice Latches.

When using plate configurations that feature turns, a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

What makes brass so good?
Still Australian designed and made, the Lockwood range has adapted as design trends have come and gone but one thing has remained constant - the high quality brass used to make it. Whether it is for aesthetics, ergonomics, functionality or durability brass remains the ideal material for high quality door furniture.

Brass is highly durable
Brass has a low friction surface which makes it ideal for connected moving parts. This is why it is the perfect choice for producing high use door furniture that will prove durable with minimal servicing. Lockwood brass door furniture has been successfully tested to exceed the highest durability rating (D8, 500,000 cycles) under the Australian Standard (AS4145.2: 2008).

Brass is corrosion resistant
Brass door furniture provides durable performance in high corrosion applications. Unlike other commonly used materials it contains no iron so it will not rust or tea stain in high corrosion environments. Lockwood Brass Door Furniture in satin chrome brushed finish (SC) has been successfully tested under NATA conditions to maintain both function and finish under prolonged neutral salt spray test for over 1000 hours satisfying the highest ranking (C10) of the appropriate Australian Standard (AS4145.2: 2008). This result confirms that Lockwood Brass Door Furniture the ideal choice for use in coastal applications and other corrosive environments.

Brass is green
Brass is a highly machinable material making it able to be accurately manufactured with less scrap, less rework and less energy than other materials. Products made from brass generally have good "cradle-to-grave" characteristics as not only do they show good durability but brass is also readily recycled at the end of the products working life. Furthermore Lockwood Brass Door Furniture is manufactured right here in Australia so there is far less energy expended shipping product into the country and the manufacture occurs at ASSA ABLOY Australia's ISO 14001 accredited manufacturing facility.

Trade Pack

Description	Part Number
External Plate with Cyl Hole (Con. Fix), No Lever	1800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever	1900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever	1801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever	1901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever	1802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever	1803/70SC
External Plate with Oval T/Knob (Con. Fix), Solid Brass Lever	1804/70SC
Internal Plate With Oval T/Knob (Vis. Fix), Solid Brass Lever	1904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever	1805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever	1905/70SC
External Plate with Oval T/Knob (Con. Fix), No Lever	1806SC
Internal Plate With Oval T/Knob (Vis. Fix), No Lever	1906SC
External Plain Plate (Con. Fix), No Lever	1807SC
Internal Plain Plate (Vis. Fix), No Lever	1907SC
External Plate with Cyl Hole (Con. Fix), Fixed Lever	1808/70SC
Internal Plate with Cyl Hole (Vis. Fix), Fixed Lever	1908/70SC
External Plate (Con. Fix), Fixed Lever	1809/70SC
Internal Plate (Vis. Fix), Fixed Lever	1909/70SC
External Plate with Two Cyl Holes (Con. Fix)	1810SC
Ext. Plate with Privacy Indicator Emergency Turn (Con. Fix), No Lever	1813SC
Ext. Plate with Privacy Indicator Emergency T/ Knob (Con. Fix), Solid Brass Lever	1814/70SC
Ext. Plate with Privacy Indicator Oval T/Knob Con. Fix), No Lever	1815SC
Ext. Plate with Privacy Indicator Oval Turn (Con. Fix), Solid Brass Lever	1816/70SC
External Plate With Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever	1820/70SC
Internal Plate With Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever	1920/70SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Fixed Lever	1821/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Fixed Lever	1921/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever	1822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever	1922/70SC
External Plate with L.E.D (Con. Fix), No Lever	1823SC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector	1939S/70LSC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy	1939/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector	1941S/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy	1941/70LSC

Note: Items shown above are in Satin Chrome Brushed Finish (SC). For alternative finish substitute SC for appropriate finish.

Note: For items above featuring levers, the 70 Lever has been shown. For alternative lever substitute 70 for appropriate lever number.

Handing

LOCKWOOD 2800 SERIES ROUND END PLATE FURNITURE

Style and versatility are combined in this range which comprises four architecturally designed plates which give you the flexibility to mix and match to suit the aesthetics of every application.

Trade Pack

Description	Part Number
External Plate with Cyl Hole (Con. Fix), No Lever	2800SC
Internal Plate with Cyl Hole (Vis. Fix), No Lever	2900SC
External Plate with Cyl Hole (Con. Fix), Solid Brass Lever	2801/70SC
Internal Plate with Cyl Hole (Vis. Fix), Solid Brass Lever	2901/70SC
External Plate with Emergency Turn (Con. Fix), No Lever	2802SC
External Plate with Emergency Turn (Con. Fix), Solid Brass Lever	2803/70SC
External Plate with Oval T/Knob (Con. Fix), Solid Brass Lever	2804/70SC
Internal Plate With Oval T/Knob (Vis. Fix), Solid Brass Lever	2904/70SC
External Plain Plate (Con. Fix), Solid Brass Lever	2805/70SC
Internal Plain Plate (Vis. Fix), Solid Brass Lever	2905/70SC
External Plate with Oval T/Knob (Con. Fix), No Lever	2806SC
Internal Plate With Oval T/Knob (Vis. Fix), No Lever	2906SC
External Plain Plate (Con. Fix), No Lever	2807SC
Internal Plain Plate (Vis. Fix), No Lever	2907SC
External Plate with Cyl Hole (Con. Fix), Fixed Lever	2808/70SC
Internal Plate with Cyl Hole (Vis. Fix), Fixed Lever	2908/70SC
External Plate (Con. Fix), Fixed Lever	2809/70SC
Internal Plate (Vis. Fix), Fixed Lever	2909/70SC
External Plate with Two Cyl Holes (Con. Fix)	2810SC
Ext. Plate with Privacy Indicator Emergency Turn (Con. Fix), No Lever	2813SC
Ext. Plate with Privacy Indicator Emergency T/ Knob (Con. Fix), Solid Brass Lever	2814/70SC
Ext. Plate with Privacy Indicator Oval T/Knob Con. Fix), No Lever	2815SC
Ext. Plate with Privacy Indicator Oval Turn (Con. Fix), Solid Brass Lever	2816/70SC
External Plate With Cyl Hole & L.E.D (Con. Fix), Solid Brass Lever	2820/70SC
Internal Plate With Cyl Hole & L.E.D (Vis. Fix), Solid Brass Lever	2920/70SC
External Plate with Cyl Hole & L.E.D (Con. Fix), Fixed Lever	2821/70SC
Internal Plate with Cyl Hole & L.E.D (Vis. Fix), Fixed Lever	2921/70SC
External Plate with L.E.D (Con. Fix), Solid Brass Lever	2822/70SC
Internal Plate with L.E.D (Vis. Fix), Solid Brass Lever	2922/70SC
External Plate with L.E.D (Con. Fix), No Lever	2823SC
Internal Plate with Disabled Turn (Vis Fix), Solid Brass Lever - Suits Selector	2939S/70LSC
Internal Plate with Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy	2939/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Selector	2941S/70LSC
Internal Plate with Privacy Indicating Disabled Turn (Vis. Fix), Solid Brass Lever - Suits Synergy	2941/70LSC

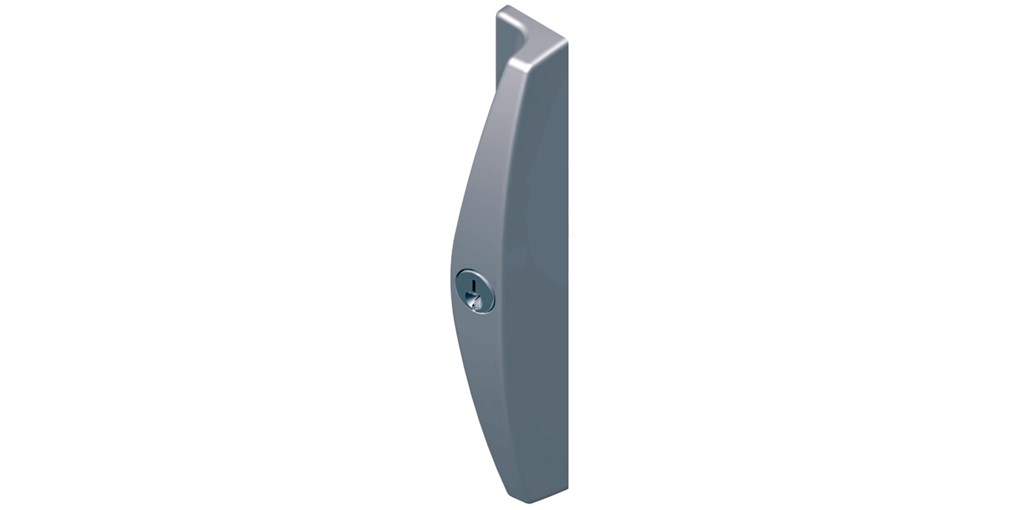

ONYX SLIDING DOOR LOCKS

The Lockwood Onyx range incorporates advanced security and safety features making this product the ideal choice for sliding patio door applications.

Style and Function

This range takes design cues from contemporary architectural styling and complements several of Lockwood’s most popular levers to provide a harmonious look and feel throughout the home. The functionality of the Onyx range has been enhanced by the intuitive operation of the unique sliding snib and the innovative LockAlert feature that indicates the lock status at a glance.

Application

Surface mounted lockset suitable for use with most aluminium and timber sliding doors. The flexible chassis coupled with innovative design features results in a non-handed product that is extremely easy to install and suitable for new and most retrofit applications.

Features of the Onyx Sliding Patio Door Lock

Twin locking beaks for added security
Door Close Detect button (DCD) anti slam feature protects locking beaks from accidental damage
LockAlert® indicator shows lockset status at a glance
DualSelect® enables two stage key locking
Safety Release™ function minimises the risk of being locked in
Ergonomic sliding snib with intuitive downward motion to unlock

Strength and Durability

Made to the highest quality levels, the Onyx range satisfies the Australian Standard requirements for strength and durability.

Product Range

A wide selection of furniture options are available in the Onyx range to suit various sliding door applications. The range includes internal D handles and slim pulls and a variety of external furniture and strike options.

LOCKWOOD MORTICE LOCKS

LOCKWOOD PRIMARY LOCK 3582 SC (METAL)

3582SC

Lockwood Synergy® 3582 series short backset mortice lock.

Suitable for for commercial shop front doors.

For dimensions see FAQs

Features

23 mm backset.
Operated by key or handle outside or by turnsnib, key or handle inside.
Cylinder or handle retracts the latch.
Suits door thickness 32-50 mm.
15 mm stainless steel reversible latchbolt.
Easily adapted to most function.
Supplied less cylinder.
Compatible to most restricted keying systems.
Electric strike compatibility.
25.4 mm, 30 mm and 38 mm backsets also available.
Finished in satin chrome.

FAQs

3582 Dimensions

Measurements in mm

LOCKWOOD 3782 UNIVERSAL PRIMARY LOCK 23mm BACKSET

3782SS

Lockwood Selector® 3782 universal mortice lock.

The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock.
In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature.

All handing setting (Passage, Combination or Escape) can be adjusted via the hub selector located under the face plate.

For dimensions and handing see FAQs

Features

Short backset universal primary mortice lock.
Easy Red /Green function setting.
All lock settings are made from under the faceplate allowing for simple in-door configuration.
Standard primary locks include holdback and anti-lockout capabilities.
Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
Operated by key or handle outside or by turnsnib, key or handle inside.
Zinc diecast body with stainless steel chassis plates for improved strength.
Electric Strike compatibility.
23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
Suits metal door thickness 35-50 mm.
15 mm stainless steel reversible latch bolt.
Supplied less cylinder.
Supplied with Selector® 'V' cam.
Compatible to most restricted keying systems.
Finished in stainless steel.

FAQs

3782 Dimensions

Measurements in mm

3780 Handing

LOCKWOOD PRIMARY LOCK 3572 SC TIMBER

3572SC

Lockwood Synergy® 3572 Series vestibule lock.

Ideal for commercial applications.

Fire rated to 4 hours.

For dimensions see FAQs

Features

Vestibule function primary mortice lock.
Operated by key or handle outside or by turnsnib, key or handle inside.
Can be set to escape or lockable function on either side of lock.
60 mm backset as standard, 89 mm and 127 mm available upon request.
Suits door thickness 32-50 mm.
15 mm stainless steel reversible latch bolt.
Easily adapted to any function (except 3572XA).
Supplied less cylinder.
Compatible to most restricted keying systems.
Finished in satin chrome.

FAQs

3572 Dimensions

Measurements in mm

Weatherstrip

The same Weatherstrip is used on both the head and sill for standard glass, aluminium and timber louvres.

Off Standard Height Galleries that are within 5mm of a Standard Height Gallery will not have a top fixed blade and will therefore require Standard Height Weatherstrip sets. Off Standard Height Galleries that are more than 5mm greater than or less than a Standard Height Gallery will have a top fixed blade and will therefore require Off Standard Height Weatherstrip sets.

Altair Weatherstrip does not require notching to accommodate the louvre gallery.

Weatherstrip, complete with seal, must be used in the head and sill to satisfy the Breezway Product Performance Warranty.

Weatherstrips to head and sill add 10mm to overall gallery height.

Weatherstrips

POWER LOUVRE

Altair® Louvres in Other Window Frames

Altair Louvres are also available in a wide range of window frames. Breezway has developed the Altair Louvre System so window manufacturers can install Altair Louvres within their own aluminium, timber or UPVC frames for residential and commercial applications. This provides the benefits of Altair Louvres while retaining the benefits inherent in the window manufacturers own window designs.

The Altair Louvre Component System provides a way for window manufacturers to include Altair Louvres, Weatherstrip, Powerlouvre and security bars in their window frames.

Altair Louvres with Manual Operation

Altair Louvre
The Altair Louvre and Weatherstrip can be screw fixed to the outer frame.

Exploded View
Exploded view of Altair Louvre Component System including parts and screw fixings.

Exploded View with Backing Strip
An optional backing strip can be fixed to the jambs of the outer frame which allows the Altair Louvre to be clipped in place to conceal the fixings and provide a more appealing finish.

Altair Powerlouvre in Other Frames

For projects where Powerlouvre Windows are desired in a framing system other than the Breezway Easyscreen Window System, Altair Powerlouvre Windows are available in component form.

The Altair Powerlouvre Component System can be assembled and fitted by approved fabricators into selected timber and flat aluminium frames that are wider than 65mm. Breezway Component Powerlouvre head and sill weatherstrips must be used.

Please consult Breezway for frame compatibility advice.

Powerlouvre Component System
Powerlouvre can be fitted in other frame types using the purpose design Powerlouvre Component head extrusion to conceal the Powerlouvre.

Exploded View
Exploded view of Powerlouvre Component System using backing strip.

Security Bar Systems

Security bars are an effective barrier when the louvre is open, that unlike screens do not reduce any air flow. Breezway has security bars available to fit 152mm (6”) blade heights with 16mm diameter solid aluminium bars fixed to the window frame to the outside of the blades and positioned to allow the window to open fully. Altair Security Bars will have a moderate effect on views with 16mm solid bars and 124mm vertical spacings between bars. Please see below the options available including Altair Louvres with Security Jamb and D Bar and Altair Louvres with U Channel Security and Round Bar.

Security Jamb and D Bar
The Altair Louvre can be integrated with our Security jamb and 16mm D bar to provide increased security and a neat finish with no visible louvre and jamb fixings.

Exploded View
Exploded view of Altair Louvre with Security Jamb.

U Channel Security and Round Bar
The U Channel System functions as an add on to the Altair Louvre System. Fixings will be visible.

Exploded View
Exploded view of Altair U Channel Security and Round Bar.

Altair in other Frames 3D Models

Online viewing of 3D models is a relatively new technology. Please note the models shown below are rendered animations only. For more technical detail please view the CAD and BIM model section below. Viewing 3D models requires a fast internet connection and reasonably high speed computer processor. Viewing may not be possible on some older computers. We recommend Google Chrome for the best viewing results.

Altair Louvre in 100 x 44 Commercial Frame

Altair Powerlouvre to fit other window frames

Altair in Other Frames Standard Heights

While Altair Louvre Windows can be manufactured in any size specified, the wind and water rating for the building project will affect the maximum allowable window height and bay width. Please refer to the Altair Product Performance Warranty for technical information.

For Altair Louvre Gallery standard heights please see the size chart on the right. Off Standard heights are available but this will add cost and result in a fixed louvre blade to act as a filler piece. Some off-standard heights are unavailable when using the 102mm Altair Louvre Galleries with the Stronghold System. For the Altair Component System these include: Standard Height + 19mm to Standard Height + 30mm.

No. of Blades	Altair Louvres with Breezway Weatherstrip Standard Heights*
1	152 mm Blades	102 mm Blades
2	330mm	-
3	470mm	320mm
4	610mm	410mm
5	750mm	500mm
6	890mm	590mm
7	1030mm	680mm
8	1170mm	770mm
9	1310mm	860mm
10	1450mm	950mm
11	1590mm	1040mm
12	1730mm	1130mm
13	1870mm	1220mm
14	2010mm	1310mm
15	2150mm	1400mm
16	2290mm	1490mm
17	2430mm	1580mm
18	2570mm	1670mm
19	2710mm	1760mm
20	2850mm	1850mm
21	2990mm	1940mm
22	-	2030mm
23	-	2120mm
24	-	2210mm
25	-	2300mm
26	-	2390mm
27	-	2480mm
28	-	2570mm
29	-	2660mm
30	-	2750mm
31	-	2840mm
32	-	2930mm
33	-	3020mm

* To calculate the gallery height only, deduct 10mm.

Altair Component Standard Heights

Stronghold® System

Strong and Safe

The Stronghold System is available as an added feature for your Altair Louvres to add strength and safety to your building.

Altair Louvre blades are retained by a pin that passes through the clips, bearing and blade. Once installed, the pins cannot be removed without tools and the blades are prevented from being removed from the clips. Pins are visible on the inside/underside of the clips.

The Stronghold System is ideal for residential or high-rise applications and is also a great option for school environments.

The Stronghold System can be screened, and offers privacy or shading options when using aluminium blades. This is well suited to wintergarden applications or outdoor residential areas. The Stronghold System also acts as a primary seal to outside noise for living or office areas.

Video Altair Louvre Windows with Stronghold for multi storey buildings

Safeguarding Against Falls

Altair Louvre Windows with the Stronghold System and with restricted openings, comply with the new provisions in the Building Code of Australia for Fall Prevention through openable windows and have passed testing to the Australian Window Association’s industry code of practice “ICP.005 – Protection of Openable Window Testing Specification.” As the glazed area can be opened to allow airflow, they can be used to maximise natural ventilation in multi-level applications compared to other window types.

To learn more about fall prevention and window replacement in apartments please visit the Apartment Window Replacement page.

Tested to ensure Superior Performance

Altair Louvres with the Stronghold System have been tested to AS2047 “Windows in Buildings”. Static load testing to AS1170 has also been conducted to ensure superior performance on balconies, offices and external high level areas. Depending on the blade material, testing of Stronghold has achieved a load of 700N and up to 1500N in the open position.

Note: The Stronghold System is a window, not a balustrade system. Test reports are available from Breezway. It is the responsibility of the building designer to specify systems and products that meet the barrier and balustrade requirements for a building.

To learn more about using Altair Louvres to Meet Fall Prevention Through Openable Window Requirements, please visit the Fall Prevention Compliance page.

Product Offer and Maintenance

Available for 102mm and 152mm glass or aluminium blades.
Can be installed in the Breezway Easyscreen™, Innoscreen® or SL2® Window Systems.
Altair Component System available for installation into other framing systems.
Identical to the standard heights of Altair Louvre Window Systems with regular clips.
Available with the range of Altair Louvre options, including Powerlouvre.
Heat soaked glass blades also available for code compliance.
Enables bay widths of up to 1200mm. Please refer to the Breezway Product Performance Warranty for more information.

Maintenance
If blades need to be removed from an Altair Stronghold Louvre Window or if broken blades need to be replaced, the pins must be removed. The removal process requires tools and will destroy the pins so new pins will be required when blades are re-installed.

Blade Type Compatibility

Blade Type	152mm High	102mm High
Annealed glass	N	N
Toughened glass	Y	Y
Aluminium	Y	Y
Straight cut timber	N	N

RAVEN DOOR SEALS

RP-2A

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. It is ideal for sliding or double acting doors.
Can be concealed inside of an aluminium door suite bottom rail by the fabricator.
Used in conjunction with Raven threshold plates.

Location: Bottom of single, double, sliding and double acting doors.

Min/Max Gap: Up to 19mm (user determined).

Finish: Satin clear (silver), bronze anodised aluminium

rp-2b

A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door.

Used in conjunction with Raven threshold plates.

Location: Bottom of single, double or sliding doors.

Min/Max Gap: Up to 13mm (user determined).

Finish: Satin clear (silver), bronze anodised aluminium (15µm) or paint at extra cost.

Fixing: Self adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Seal: Black fine, dense, UV stabilised nylon filaments.

Sizes: Available in stock lengths.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

RP-3

A cam activated, lifting action, automatic door bottom seal. It is quick and easy to install without cutting or removing the door and uses concealed fasteners. This DIY product has been granted an Australian Design Award. Ideal for residential and light commercial applications such as motels and retirement villages.

Can be used in conjunction with Raven threshold plates.

Location: Bottom of single inward opening butt hinged doors.

Min/Max Gap: 1mm to 16mm.

Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).

RP-5

Can be used in conjunction with Raven threshold plates.

Location: Bottom of single inward opening butt hinged doors.

Min/Max Gap: 1mm to 16mm.

Finish: Satin clear (silver), bronze or bright gold anodised aluminium (15µm).

RP-8SI

A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb on its adjustable strike. RP8Si can also be fitted into the bottom rail of a metal door by the fabricator. Has a level adjustment to achieve an optimum seal.

Location: Fully morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber and metal doors.

Min/Max Gap: 3mm to 13mm.

Finish: Satin clear (silver), bronze or black anodised aluminium (15µm).

RP-10SI

An effective acoustic and smoke door stop frame seal which is quick and easy to install on plain or rebated door frames. Multi-fin design for improved noise and energy sealing. The minimum deflection design creates maximum sealing efficiency.

RP10Si can be mitred or butt jointed for a neat finish. Adjustable by large concealed fixing slots for a precision fit, RP10Si has a tamper resistant, rigid PVC cover strip (SE). Can be used on all four sides of the door to form a bulk head seal.

Note: If fixing to rebated frames of single doors, specify a long backset door latch.

Location: Head and jambs of single and double butt hinged doors.

Min/Max Gap: 0mm to 10mm.

Finish: Satin clear (silver), bronze

RP-26

A heavy duty sweep seal for door bottoms of outward opening doors. Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
The RP26 is ideal for use in conjunction with Raven threshold plates.

Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as an astragal seal.

Min/Max Gap: 5mm to 20mm (user determined).

Finish: Satin clear (silver), bronze anodised

RP-38SI

A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is self levelling and reversible for left and right handed operation. Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications. Doubles as a kick plate when semi-morticed. Operated automatically by pressure against the door jamb or stop on its adjustable brass strike.

Location: Face mounted or semi-morticed into bottom of single and double butt hinged doors. For semi-mortice minimum door thickness of 50mm for rebated meeting stiles and 40mm for plain meeting stiles is required. Can be face mounted to the bottom of metal doors.

Min/Max Gap: 3mm to 13mm.

Finish: Satin clear (silver), bronze anodised

RP-77

A heavy duty threshold ramp with a ribbed design which can be positioned back to back to form a two way threshold ramp conforming to NCC Pt. D2.15 Thresholds (b).

Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration. Suitable for use with most floor pivots.

Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.

Can also be used to provide a ramped frame for internal door mats.

Location: Door sill.

Finish: Satin clear (silver) or bronze anodised aluminium (25µm).

RP-16SI

RP16Si is an acoustic, smoke astragal. Its proven design is effective in sealing the meeting stiles of plain or rebated double doors. Its aluminium trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop. If necessary, its aluminium fixing leg can be checked out to allow for locks and latches.

For maximum acoustic performance, specify two seals, i.e. one for each door leaf. (Minimum door thickness subject to centre latch and dimensions of morticed door bottom seals).

RP16Si is used where one door leaf is active. For smoke door magnetic hold open applications such as hospital corridors, sequence select door closers are required.

Location: Meeting stiles of double butt hinged doors.

Min/Max Gap: 2.5mm to 8mm.

Finish: Satin clear (silver), bronze

RP-89

A rigid and flexible co-polymer weather and energy seal. RP89 suits leading proprietary brand, hollow channel aluminium door suites. Concealed in the bottom of aluminium butt hinged doors or the bottom and head of pivot doors, RP89’s unique design accommodates OEM and retrofit applications.

When used in conjunction with a Raven threshold plate an excellent weather and energy seal is achieved.

Location: Bottom or top of 40-45mm hollow channel aluminium doors. Suits butt hinged and pivot hinged systems. Sliding doors (user determined).

Min/Max Gap: 6mm to 9mm.
Note: A Raven threshold plate is recommended to clear floor surface.

Fixing: Snap fit design with end support lugs and screws supplied.

Seal: Black rigid and grey flexible UV stabilised co-polymer.

RP-35

An adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications. Operated automatically by pressure against the door jamb or stop on its adjustable strike.

Location: Face mounted or semi-morticed into the bottom of solid core single and double butt hinged doors. The RP35Si can also be face mounted to the bottom of metal doors.

Min/Max Gap: 3mm to 13mm.

Finish: Satin clear (silver) or bronze anodised aluminium (15µm).

Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws, colour matched escutcheon plates and cover strip supplied. Fixing holes are pre-slotted.

Seal: RP308Si. Grey silicon rubber (SE).

Sizes: 1220mm, 1070mm, 920mm, 820mm, 600mm, 380mm to 295mm(min). Seals cut back to exact size
